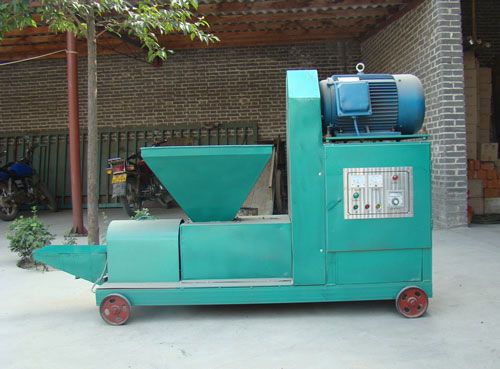

System bar machine, also known as wood powder machine machine, its products can be divided into sawdust machine, rice husk sawdust stick machine, etc, the equipment is the main forming mechanism for charcoal production equipment. It can water content < 12% of bamboo, wood, shells, straw (with the exception of rice straw, wheat straw) and other granular (5 mm or less in length, diameter 3 mm) or less waste, in the case of without any binder, after high temperature and high pressure process, squeeze into a bar with a central hole solid pay.

Working principle of the system bar machine;

System of rods machine is the use of sawdust, crop stalks (corn stalk, big haulm, sorghum stalk, cotton, rape stalk, peanut seedling, sunflower stalk), chaff, grasses, shrubs, bamboo cutter head, head, bagasse as raw material, after sawdust crusher and dryer crushed after drying, the propellers and formed under the action of high temperature high heating circle would loose raw materials processed into KongXinBang body. The product has big density, small volume, good combustibility, can be used for firing mechanism charcoal, alternative fuel wood and coal, too. General product outer diameter of 50-70 - mm, aperture for 15 to 20 mm, hollow four or six Angle shape.

Charcoal machine adopts the motor is 18.5 kw, through the transmission device, make in the propellers rotating charcoal machine, screw propeller spiral is the former after the small, raw material by propeller tube extrusion molding, molding drum USES is wear-resisting steel manufacturing, the internal shape to paid the shape of rods, in its external wrapped around the heating circle, when the propeller to push the material into the molding drum, raw materials in the molding received a lot of pressure in the cylinder, forming tube heating, and received the original raw material of wood thermal decomposition of sticky material, makes the raw material extrusion molding. Charcoal machine has high yield, easy forming, bar rules, stable work, etc, to become China's most popular charcoal machine equipment, and export many countries in the world.

System bar machine USES and features:

This product design is reasonable, manufacturing quality and reliable, has a simple structure, convenient operation, small volume, covers an area of less, save work and save electricity.

Second, the design of automatic control electric heating device, can randomly adjust the dry humidity of material, guarantee the stability of the material forming, improve work efficiency.

Three, the product is the main parts adopt wear-resisting material through special processing, so can suppress the production continuously, and durable.

Four, suitable for all kinds of biomass raw material and forming, and low energy consumption, high production efficiency.

Five, to change the old machine for three heart two bearing, increase the stability and durability of the machine.

Six, reforming the old oil lubrication for oil-immersed lubrication, as long as no shortage of oil, can be used for many years.

Seven, increase the pitch increasing feed rate, thus greatly increased the production.

Eight, improved the structure of molding drum, reduced the mechanical and the friction of the raw materials, increase the raw material and its adaptability to various materials, change the density of the mandrel forming.

System bar machine parameters
