The paint bucket crusher to adapt to the broken range: diesel barrels, paint shell, shell paint, steam barrels, oil drum, the petrol tank, oil barrels, petrol cans, paint cans, cans, etc

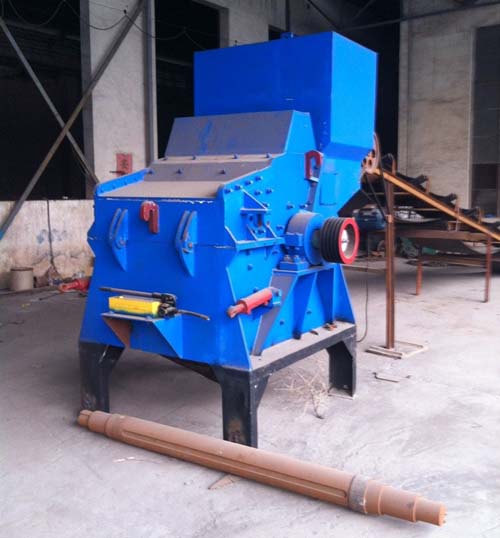

Internal structure and the paint bucket crusher advantages: the machine is made of 20 mm - 30 mm manganese steel plate production, with a hydraulic device, may at any time helicopters cover for maintenance, easy to operate, the whole machine internal use and thicken the knife dish, bold shaft can effectively break easily broken metal press hard, at the bottom of the screen can be based on user broken metal set (30 mm - phi phi sieve hole 60 mm).

The paint bucket crusher internal components group 1) host shell made of thick steel plate, lining for high manganese steel, replaceable 2) the host has 11 rotor steel plate installed on the horizontal axis, have 6 pin shaft steel plate of circular distribution, the axial suspension has 10 hammer head; 3) the ball bearing spindle bearing and circulating oil pressure lubrication cooling, and is equipped with temperature sensors; 4) inlet is equipped with super double tube feeding device, position held high, the rotation direction, can be big loose material gradually flattening, into the machine. The machine USES single motor and double configuration of two kinds, the user can choose according to the size of the transformer model configuration. Double configuration of the paint bucket crusher effective to decrease the torque force, make the paint bucket crusher energy saving province electricity, like broken tanks, barrel metal can be used when a motor using machine inertia is broken.

The paint bucket crusher various types and technical parameters
