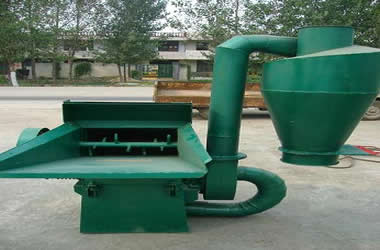

Multi-functional straw crusher can crush the corn stalk, straw, peanut shells and bean stalk, flower sticks to stalk burning crop waste. Avoid the crop straw burning in vain, protecting the environment, effectively develop the renewable sources of energy. The machine is reliable performance, simple operation, convenient. The equipment production raw material widely, can adapt to the corn stalk, straw, peanut shells and bean stalk, flower sticks to stalk burning crop waste.
The straw crusher product characteristics, purpose and scope of application:
This product design is reasonable, manufacturing quality and reliable, has a simple structure, convenient operation, small volume, covers an area of less, save work and save electricity.
Second, the design of automatic control electric heating device, can randomly adjust the dry humidity of materials, ensure the stability of discharging shape, improve work efficiency.
Three, the product is the main parts adopt wear-resisting material through special processing, so can suppress the production continuously, and durable.
Four, apply to especially in all kinds of biomass raw materials (corn straw, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and farmers as the raw material or wood scraps from the factory) and forming.
The straw crusher technical parameters
| Model | The motor power | Appearance size(mm) | Yield(kg) |
|---|---|---|---|
| 9FQ-320 | 3kw | 350*550*850 | 100-300 |
| 9FQ-360 | 3kw | 400*550*850 | 200-300 |
| 9FQ-360 | 5.5kw | 650*600*1050 | 200-600 |
| 9FQ-400 | 7.5kw | 700*650*1050 | 300-800 |
| 9FQ-420 | 11kw | 780*700*1100 | 400-1000 |
| 9FQ-500 | 15kw | 900*850*1250 | 500-1500 |
| 9FQ-600 | 22-30kw | 1350*950*1550 | 1000-2000 |
| 9FQ-700 | 30-37kw | 1450*1050*1650 | 1500-3000 |
| 9FQ-800 | 45-55kw | 1750*1350*1800 | 3000-5000 |
| 9FQ-900 | 55-75kw | 1950*1550*1950 | 4000-8000 |
| 9FQ-1000 | 75-90kw | 2250*1750*2050 | 5000-12000 |
